Automatic Electric Cable Rolling Feeder Prefeeder Machine Wire Feeding Machine

Automatic Electric Cable Rolling Feeder Prefeeder Machine Wire Feeding Machine

Cable prefeeding machine wire feeder machine Product description Features: Packing & Shipping: For small and light produ
SHARE

Description

Basic Info
Model NO. Wl-F380
Installation Vertical
Driven Type Electric
Mould Life Cable Feeder Machine
Model Wl-F380
Display Mode Digital Tube
Application Wire, Cable... High Speed Auto Feeding
Wire Type Electric Wire, Cable, PVC, etc.with Reel
Wire Range 0.5-10 Square Millimeter
Feeding Speed 0-4m/S
Catheter Diameter Maximum Dia.18
Reel Diameter Maximum 600mm
Voltage AC110c/220V 50/60Hz
Load-Bearing 60kg
Induction Type Proximity Switch, Multi-Speed.
Drive Mode Inverter + Motor + Speed Reducer
Weight 75kgs
Dimensions 75*40*110cm
Transport Package Wooden Case
Specification 75*40*110cm
Trademark Crown
Origin Kunshan
HS Code 8428399000
Production Capacity 0-4m/S
Product Description

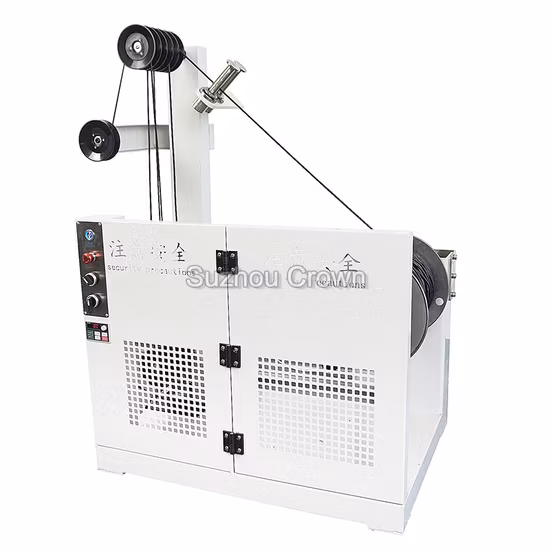

Cable prefeeding machine wire feeder machine

Product description
ModelWL-F830
Display modeDigital tube
Function Wire, cable... High speed auto feeding
Wire TypeElectric wire, Cable, PVC, etc.with reel shaft
Wire range 0.5-10 square millimeter
Feeding speed0-4M/s
Catheter diameterMaximum Dia.18
Reel diameterMaximum 600mm
Load-bearing60KG
Weight75kgs
Dimensions75*40*110cm

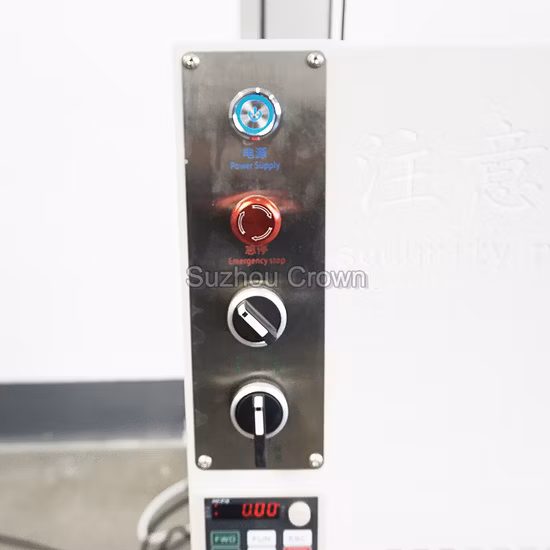

Induction typeProximity switch, multi-speed.
Drive modeInverter + Motor + Speed Reducer
Remarks Special cables can be customized, please send samples for testing

Features:
Description:
1. This machine is used for wire cutting and stripping machines.

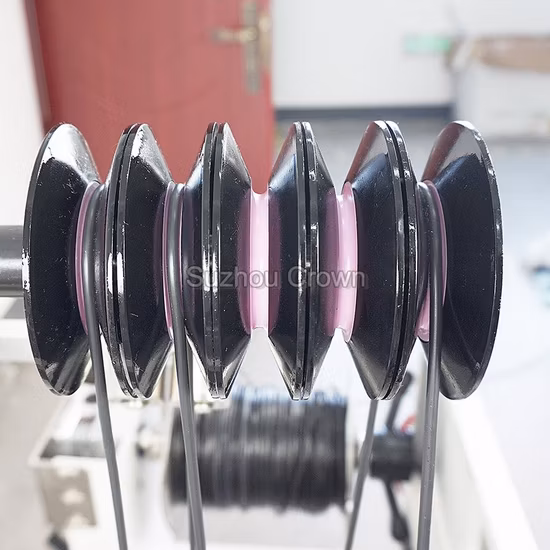

2. When the computer wire stripper works, the tension wheel moves accordingly, and the potentiometer rotates through the sprocket, and the potentiometer feeds back the signal to the inverter to control the speed of the pay-off motor, thereby controlling the speed of the line to be synchronized with the computer stripping machine.

Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Automatic Electric Cable Rolling Feeder Prefeeder Machine Wire Feeding Machine


Product show:

Machine processing samples:

Automatic Electric Cable Rolling Feeder Prefeeder Machine Wire Feeding Machine

Automatic Electric Cable Rolling Feeder Prefeeder Machine Wire Feeding Machine
