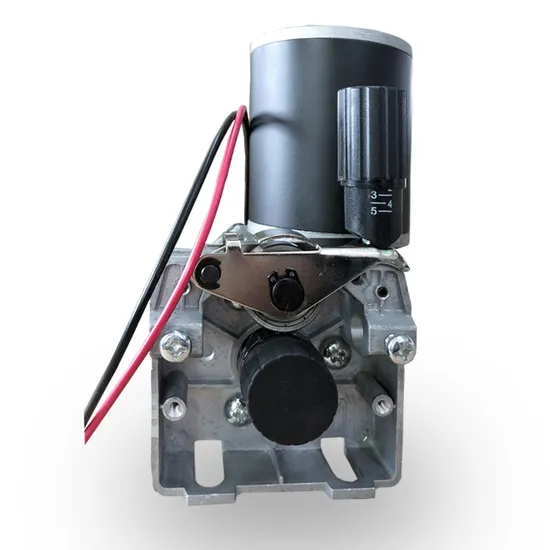

DC 24V MIG Mag Wire Feed Automatic Welding Wire Feeder (D63S-2465-180-P404E-AV0.8/1.0)

DC 24V MIG Mag Wire Feed Automatic Welding Wire Feeder (D63S-2465-180-P404E-AV0.8/1.0)

Package size per unit product 68.00cm * 39.00cm * 26.00cm Gross weight per unit product 3.300kg Automatic Welding Wire F
SHARE

Description

Basic Info
Model NO. D63S-2465-180-P404E-AV0.8/1.0
Cooling Way Water Cooling
Shielding Gas Argon Gas
Control Automatic
Frequency Range Low Frequency
Electric Current DC
Wire Feeder Type MIG Wire Feeder
Current Direct Current
Motor Type D63s/D63L
Motor Voltage DC24V
Motor Output Power 65W
No-Load Speed 180rpm
No-Load Current 1.5A
Stall Torque 20n.M
Stall Current 18A
Wire Feeder Fram Type P404D/P404e
Wire Feeder Roll Size 30*22mm
Apply for Wire Roll Weight 15kg,5kg
Feed Wire Diameter 0.6mm 0.8mm 0.9mm1.0mm 1.2mm
Max Feed Speed 16m/Min
Mini Steady Operation Voltage in Load DC4.5V
Transport Package carton
Specification 63mm
Trademark WEWIN
Origin China
HS Code 8501310000
Production Capacity 60000/Month
Packaging & Delivery
Package size per unit product 68.00cm * 39.00cm * 26.00cm Gross weight per unit product 3.300kg
Product Description
Automatic Welding Wire Feeder (D63S-2465-180-P404E-AV0.8/1.0)This wire feeder can be used for the welding machine which the welding current is less than 350A,the welding machine can work at spot weld and continue weld.

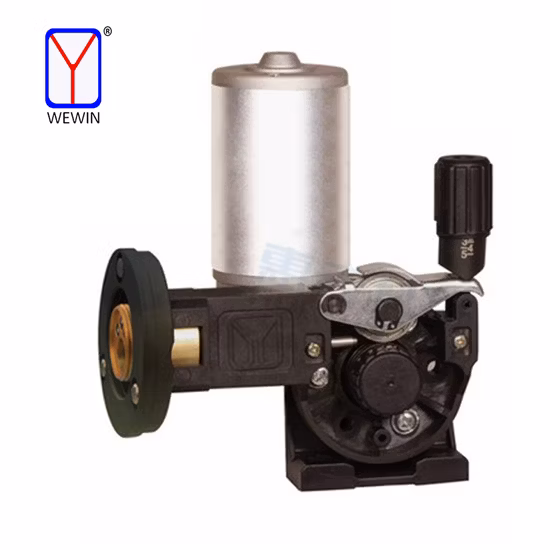

DC 24V MIG Mag Wire Feed Automatic Welding Wire Feeder (D63S-2465-180-P404E-AV0.8/1.0)


Wire Feeder Specialty

1) This wire feeder use our own designed motor which is special for welding machine with a gear ratio is 20/1, it works at low noise and high torque.2) The standard motor for this kinds wire feeder is 65watt, 180rpm, also you can use the 65W 220rpm motor.3) The roll only use the 30mm*22mm rolls4) This wire feeder is our new design for inventer welding machine.5) Motor can be fixed encoder and hall sensor and opto-switch.

Motor Technical Paramenters

Motor type:
D63S

Motor voltage:
DC24V

Motor output power:
65W
No-load speed:
180rpm

No-load current:
1.5A
Stall torque:
20N.m

Stall current:
18A

Wire feeder frame type:
P404E

Wire feeder roll size:
30mm*22mm
Maximum feed speed:
16M/min

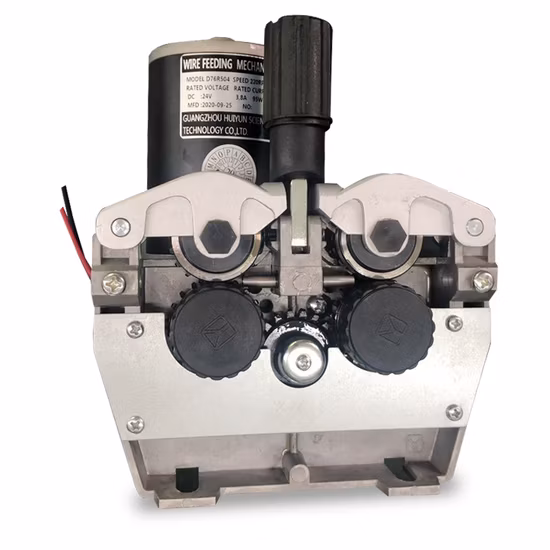

DC 24V MIG Mag Wire Feed Automatic Welding Wire Feeder (D63S-2465-180-P404E-AV0.8/1.0)

DC 24V MIG Mag Wire Feed Automatic Welding Wire Feeder (D63S-2465-180-P404E-AV0.8/1.0)

DC 24V MIG Mag Wire Feed Automatic Welding Wire Feeder (D63S-2465-180-P404E-AV0.8/1.0)

DC 24V MIG Mag Wire Feed Automatic Welding Wire Feeder (D63S-2465-180-P404E-AV0.8/1.0)
