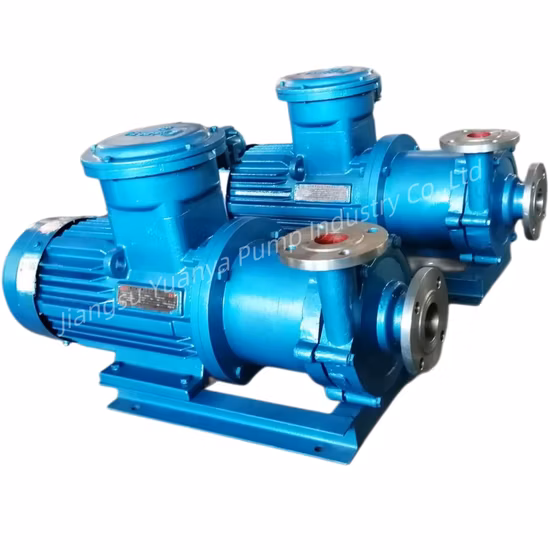

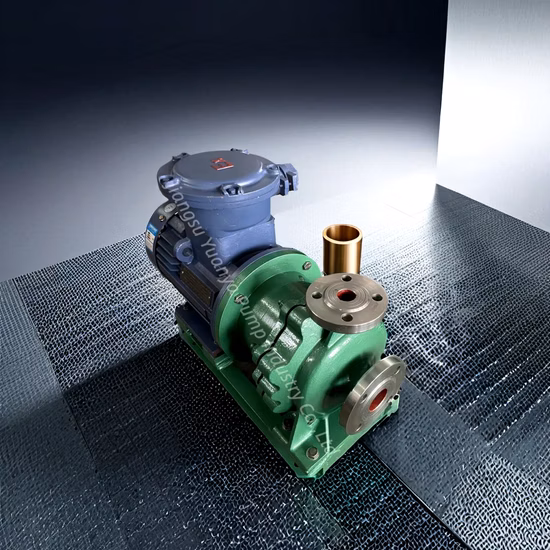

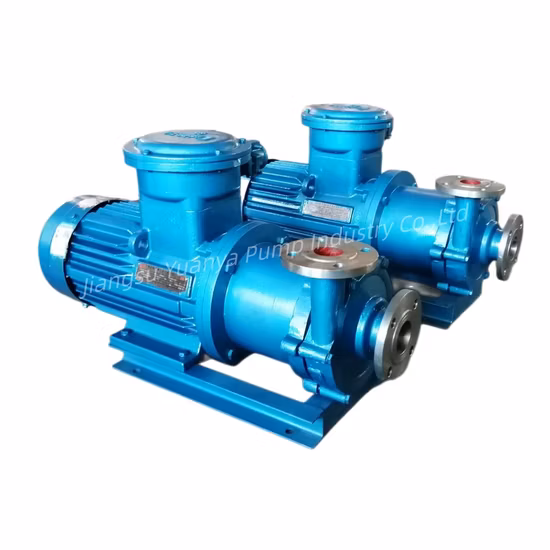

No Leakage Stainless Steel Magnetic Pump

No Leakage Stainless Steel Magnetic Pump

Brief introduction: CQB type stainless steel magnetic drive pump (ie magnetic pump) is applied by modern magnetic princi
SHARE

Description

Basic Info
Position of Pump Shaft Horizontal Pump
Pump Casing Combined Radial Split Casing
Mounting Height Suction Centrifugal
Impeller Closed
Usage Pump, Pumps, Circulating Pump, Chemical Pump
Materials SS304, SS316, SS316L, Titanium, Monel, 2205, CD4MCU
Manufacturer Level Top Level
Shaft Sealing Mechanical Seal and Packing
Pump Arrangement Pipe Hung, Horizontal
Pump Transmission Direct Coupled, Gear Box, V-Belts, Universal Joint
Flange Standard Customized
Motor Brand ABB, Siemens or Reputed Chinese Brands
Pump Bearing SKF, NSK or Reputed Chinese Brands
Transport Package Standard Seaworthy Packing
Specification Customized
Trademark Gaofeng
Origin China
HS Code 8413709990
Production Capacity 11000 PCS/Year
Product Description
Brief introduction:
CQB type stainless steel magnetic drive pump (ie magnetic pump) is applied by modern magnetic principle. It adopts internal and external magnetic steel push-pull transmission. The magnetic circuit is sealed in the isolation sleeve with the isolation sleeve, and the static seal is used to seal the seal. Other pump mechanical seals can not avoid the drawbacks of running and dripping. When the motor drives the outer magnetic steel of the magnetic coupling to rotate, the magnetic flux passes through the gap and the isolation sleeve, acts on the inner magnetic steel, causes the pump rotor to rotate synchronously with the motor, and transmits torque without mechanical contact. The pump is made of corrosion-resistant stainless steel, steel jade ceramics, tetrafluoro graphite and other materials.



Parameters:
Flow rate:Q= 3.2~100 (m³/h)
Total head:H=12~80 (m)
Pump speed:n=1450/2900rpm
Design temperature:T=-20~100ºC
Fluid s.g.:γ≤1.85
Pump diameter:50~350mm

Features:
1. The pump body of the CQB stainless steel magnetic drive pump is made of corrosion-resistant stainless steel (SS304/316/316L/2205).
2. The outer magnetic steel of CQB stainless steel magnetic drive pump is made of rare earth magnetic steel and will never be demagnetized.
3. The impeller of CQB stainless steel magnetic drive pump has the characteristics of high strength, non-deformation, corrosion resistance, smooth flow path, superior water conservancy performance, small hydraulic friction loss and high efficiency.
4. CQB stainless steel magnetic drive pump has been developed and improved by our company for many years. The utility model has the advantages of compact structure, beautiful appearance, small volume, low noise, reliable operation and convenient use and maintenance.



Configuration:Application:

CQB stainless steel magnetic drive pump is widely used in petroleum, chemical, pharmaceutical, electroplating, food, film photofinishing, scientific research institutions, defense industry and other units. Pumping acid, lye, oil, rare precious liquid, venom, volatile liquid, and circulating water equipment, filter matching. Especially the transportation of flammable, explosive and volatile liquids.

We also supply:
CQB series fluorine plastic alloy magnetic pump IMD series fluorine plastic alloy magnetic pump
ZMD series self-priming magnetic pump UHB-ZK series mortar pump
FZB series fluorine plastic alloy self-priming pump FSB(L) series fluorine plastic alloy centrifugal pump
FYH series fluorine plastic alloy submerged pump MFY-I series wear and corrosion resistant pump
GDF series fluorine interlined pipe pump Different fluorine interlined valves,sight glass,pipes and fittings.
